Duotight Push-In Fitting - 6.35 mm (1/4 in.) x 9.5 mm (3/8 in.) Reducer
DUO123

Duotight Push-In Fitting - 6.35 mm (1/4 in.) x 9.5 mm (3/8 in.) Reducer

In Stock
Delivers to ( change ) by as part of our Fast & Free Shipping.
Faster Shipping Available. Details.
Returns
60 day no hassle return policy. Details
Description

This Duotight reducer fitting can be attached to the Intertap Short Shank with 1/4" Duotight compatible barb (D1242). Compatible with EVABarrier 9.5 mm OD tubing (D1719). Also attaches to the Plastic Ball Lock Cap, allowing the cap to be used with 9.5 mm OD EVABarrier.

Duotight fittings are high-quality push-in fittings that seal tight and offer superior sealing capacity due to the double O-ring sealing design.

High Performance Double O-Ring Design:
The secret to Duotight’s superior sealing performance comes from the fact that they use not one, but two high-quality EPDM O-rings.  The double O-ring means they have literally twice the sealing surface when compared with other push-in fittings.  This makes them more reliable and significantly reduces the chance of leakage.

The double O-ring system also means that tubing can be bent at a much tighter radius without causing leaking issues, which can be an issue with other fittings.  This combination of factors makes Duotight the most reliable push-in fittings on the market.

EPDM offers excellent chemical resistance for a longer life span. When compared with silicone and vinyl, EPDM has much better gas transmission rates, better wear resistance, and is BPA-free.

No Clamps Necessary!
We recommend cutting your tubing straight, not on an angle, to ensure the line forms a complete seal. To remove the fitting simply push in the collet and the hose can be removed.


Features:
  • Insert tubing and firmly push to connect
  • Easily release tubing by pushing in the collet
  • Suitable for both gas & beverage applications
  • Made from food-grade acetal plastic
  • Double O-rings made from highly chemical resistant EPDM
  • Locking teeth made from stainless steel
  • Pressure rated to 150 psi
  • Temperature rated to 212°F (100°C)


Please note: exposure to chlorine will degrade the acetal plastic and stainless steel these fittings are made from. Do not use in contact with bleach or other chlorinated cleaning chemicals.

Kegland Part number: KL08648

Item # DUO123
Shipping Eligible for Free Shipping Program
Availability California - In Stock
Pennsylvania - In Stock
Weight 0.05 LBS
Community Q&A

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 3 questions Browse 3 questions and 4 answers
Why did you choose this?
MoreFlavor Store
Works with Carbonation Line Cleaning Cap to make gas QD for Komos Kegerator
Justin L on Sep 10, 2022
Super convenient
Patrick S on May 26, 2022
Works with Carbonation Line Cleaning Cap to make gas QD for Komos Kegerator
Justin L on Sep 10, 2022
Reduce side
Danny M on Jul 7, 2022
Super convenient
Patrick S on May 26, 2022
Trying to find a big enough valve to fit over the regulator lines.
Valued C on Sep 26, 2020
Reduce side
Danny M on Jul 7, 2022
Trying to find a big enough valve to fit over the regulator lines.
Valued C on Sep 26, 2020
Can DUO123 (6.5 mm (1/4 in.) x 9.5 mm (3/8 in.) Reducer) be used on the barbs to connect 9.5 mm EVAbarrier tubing for a gas line?
MITCHELL Campbell on Feb 6, 2021
Duotight Push-In Fitting - 6.35 mm (1/4 in.) x 9.5 mm (3/8 in.) Reducer
Duotight Push-In Fitting - 6.35 mm (1/4 in.) x 9.5 mm (3/8 in.) Reducer
EVABarrier Tubing - 6.3 mm x 9.5 mm OD - 10 ft. Length
EVABarrier Tubing - 6.3 mm x 9.5 mm OD - 10 ft. Length
1/4
1/4" Aluminum Gas Manifold
BEST ANSWER: No. You will need a small length of tubing attached to the barb then inserted into an appropriate duotight fitting.
Can these be used for glycol?
Brandon Cales on May 8, 2020
BEST ANSWER: These can be used for glycol. The plastic is suitable for continuous use at below freezing temperatures.
Can I use this to reduce the tubing coming from your growler filling attachment D1226 to the 1/4" beverage line needed for the original beer gun? Hoping this will allow me to hook the beer gun directly to my faucet.
David Rufino on May 10, 2020
BEST ANSWER: This would be the correct reducer for those sizes of tubes. The push-in fittings do work best with flexible tubing, so you will need a tiny bit of tubing on either side to make the connection perfect instead of just trying to push the steel in directly.
Reviews

5.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
1
0
0
0
0
Rated 5 out of 5

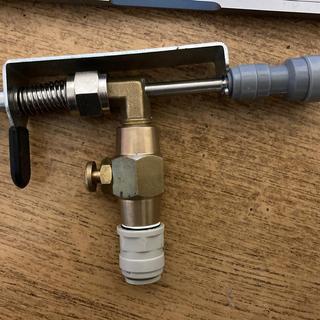

The best upgrade for the beer gun!
Fits perfectly in the beer side.
The best upgrade for the beer gun!
The best upgrade for the beer gun!
June 21, 2021
