Duotight Push-In Bulkhead - 9.5 mm (3/8 in.) x 1/2 in. BSP
DUO124

Duotight Push-In Bulkhead - 9.5 mm (3/8 in.) x 1/2 in. BSP

In Stock
Delivers to ( change ) by as part of our Fast & Free Shipping.
Faster Shipping Available. Details.
Returns
60 day no hassle return policy. Details
Description

This Duotight Bulkhead is the same one used for installing the Temp Twister cooling coil into the lid of the FermZilla. Allows you to add a bulkhead to just about anything that can then be connected to with EVABarrier 9.5 mm OD Tubing (D1719) or 3/8" OD stainless or copper tubing.

Duotight fittings are high-quality push-in fittings that seal tight and offer superior sealing capacity due to the double O-ring sealing design.

High Performance Double O-Ring Design:
The secret to Duotight’s superior sealing performance comes from the fact that they use not one, but two high-quality EPDM O-rings.  The double O-ring means they have literally twice the sealing surface when compared with other push-in fittings.  This makes them more reliable and significantly reduces the chance of leakage.

The double O-ring system also means that tubing can be bent at a much tighter radius without causing leaking issues, which can be an issue with other fittings.  This combination of factors makes Duotight the most reliable push-in fittings on the market.

EPDM offers excellent chemical resistance for a longer life span. When compared with silicone and vinyl, EPDM has much better gas transmission rates, better wear resistance, and is BPA-free.

No Clamps Necessary!
We recommend cutting your tubing straight, not on an angle, to ensure the line forms a complete seal. To remove the fitting simply push in the collet and the hose can be removed.

Features:
  • Insert tubing and firmly push to connect
  • Easily release tubing by pushing in the collet
  • Suitable for both gas & beverage applications
  • Made from food-grade acetal plastic
  • Double O-rings made from highly chemical resistant EPDM
  • Locking teeth made from stainless steel
  • Pressure rated to 150 psi
  • Temperature rated to 212°F (100°C)


Please note: exposure to chlorine will degrade the acetal plastic and stainless steel these fittings are made from. Do not use in contact with bleach or other chlorinated cleaning chemicals.

Kegland Part number: KL14564



Item # DUO124
Shipping Eligible for Free Shipping Program
Availability California - In Stock
Pennsylvania - Out Of Stock
Weight 0.05 LBS
Community Q&A

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question and 2 answers
Why did you choose this?
MoreFlavor Store
This gets my blowoff gas and possibly trub out of the fermonster and into my collection jar.
Jeff on Nov 2, 2022
Old ones leaked after a year and bled pressure off a fermentation in my all rounder with temp twister. Have extras around.
Holden B on Sep 2, 2022
This gets my blowoff gas and possibly trub out of the fermonster and into my collection jar.
Jeff on Nov 2, 2022
Need this for the Temp Twister/Speidel lib combo.
Glenn N on Oct 14, 2022
Old ones leaked after a year and bled pressure off a fermentation in my all rounder with temp twister. Have extras around.
Holden B on Sep 2, 2022
Backup part & Replace broken part
Steve G on Nov 16, 2021
replacing the liquid posts I added to be fermonster lids with these to avoid an extra poppet
Sean Hanna on Mar 12, 2021
Replace the bulkhead for my Temp Twister Coil, where the plastic threads were stripped.
Daniel W on Mar 2, 2021
Trying out this connection for Fermzilla
Alexander B on Jan 20, 2021
To mount coil
Charles W. G on Sep 30, 2020
Chiller build
Jonathan S on Sep 16, 2020
I need it
larry t on Jun 18, 2020
Looking to add 2 ports to my fermenters for temperature monitoring.
Jeff on Apr 13, 2020
To get a better seal on my thermowell in my fermenter lid
Adrian F on Mar 21, 2020
I wanted to modify a second lid for installing a temp coil.
Jeff Dahlseid on Mar 2, 2020
Need this for the Temp Twister/Speidel lib combo.
Glenn N on Oct 14, 2022
Backup part & Replace broken part
Steve G on Nov 16, 2021
What size hole is needed for the bulkhead?
Eric Cumming on Jul 11, 2020
BEST ANSWER: The major diameter of the 1/2in. BSP thread measures .790 (actual) on the Duotight bulhead I installed. I used a 13/16" (.8125") diameter on a step drill resulting in a nice snug fit.
Reviews

3.8 / 5.0
4 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
2
1
0
0
1
Rated 5 out of 5
These duotight fittings produce an airtight seal for passing a cooling coil across the top of a fermenter. Great for pressure transfers as long as your fermenter is pressure rated.
March 9, 2022
Purchased
over 2 years ago
Rated 1 out of 5
LEAKY LEAKY
They will not hold pressure and leak like crazy!
February 28, 2022
Purchased
over 2 years ago
Rated 4 out of 5
Tailor made for blowoff tubes!
Whack one of these into your fermenter lid and add some 9.5mm tubing and you've got a blowoff tube that can't be blown out. There can be many more applications...but this one stops the explosive messes in my bubbler lids!
December 27, 2020
Purchased
over 3 years ago
Rated 5 out of 5
Great for stainless CFC tubing

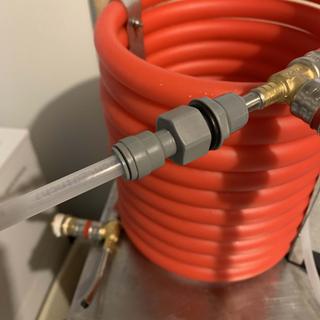

I bought the stainless version of the Exchilerator CFC and was surprised to find it came without permanently attached fittings to connect the stainless wort coil to plastic tubing. Looking to convert everything I can to duotight fittings, I found this and used it with the DUO122 fitting to create a water-tight seal between my CFC stainless steel coil and EVA barrier tubing. Take the metal nut off, slide this bulkhead fitting on the stainless tubing with the threads facing away from the end, then screw DUO122 on to this fitting and insert the EVA tubing into the DUO122. So much faster than my old system, very pleased.
User submitted image
Added Nov 6, 2020
November 6, 2020
