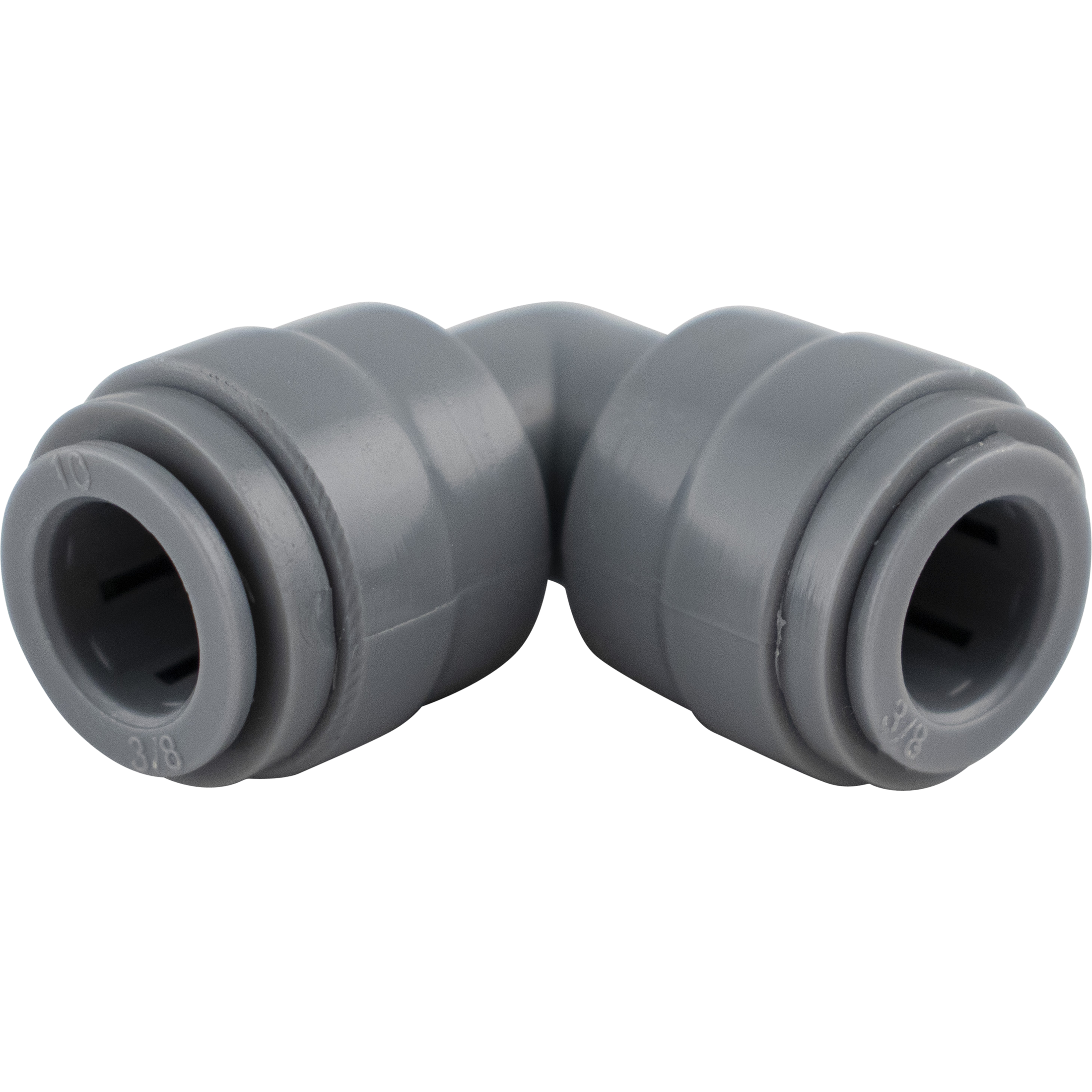

Duotight Push-In Fitting - 9.5 mm (3/8 in.) Elbow
DUO112

Duotight Push-In Fitting - 9.5 mm (3/8 in.) Elbow

In Stock
Delivers to ( change ) by as part of our Fast & Free Shipping.
Faster Shipping Available. Details.
Returns
60 day no hassle return policy. Details
Description

This Duotight elbow fitting is compatible with EVABarrier 9.5 mm OD tubing (D1719).

Duotight fittings are high-quality push-in fittings that seal tight and offer superior sealing capacity due to the double O-ring sealing design.

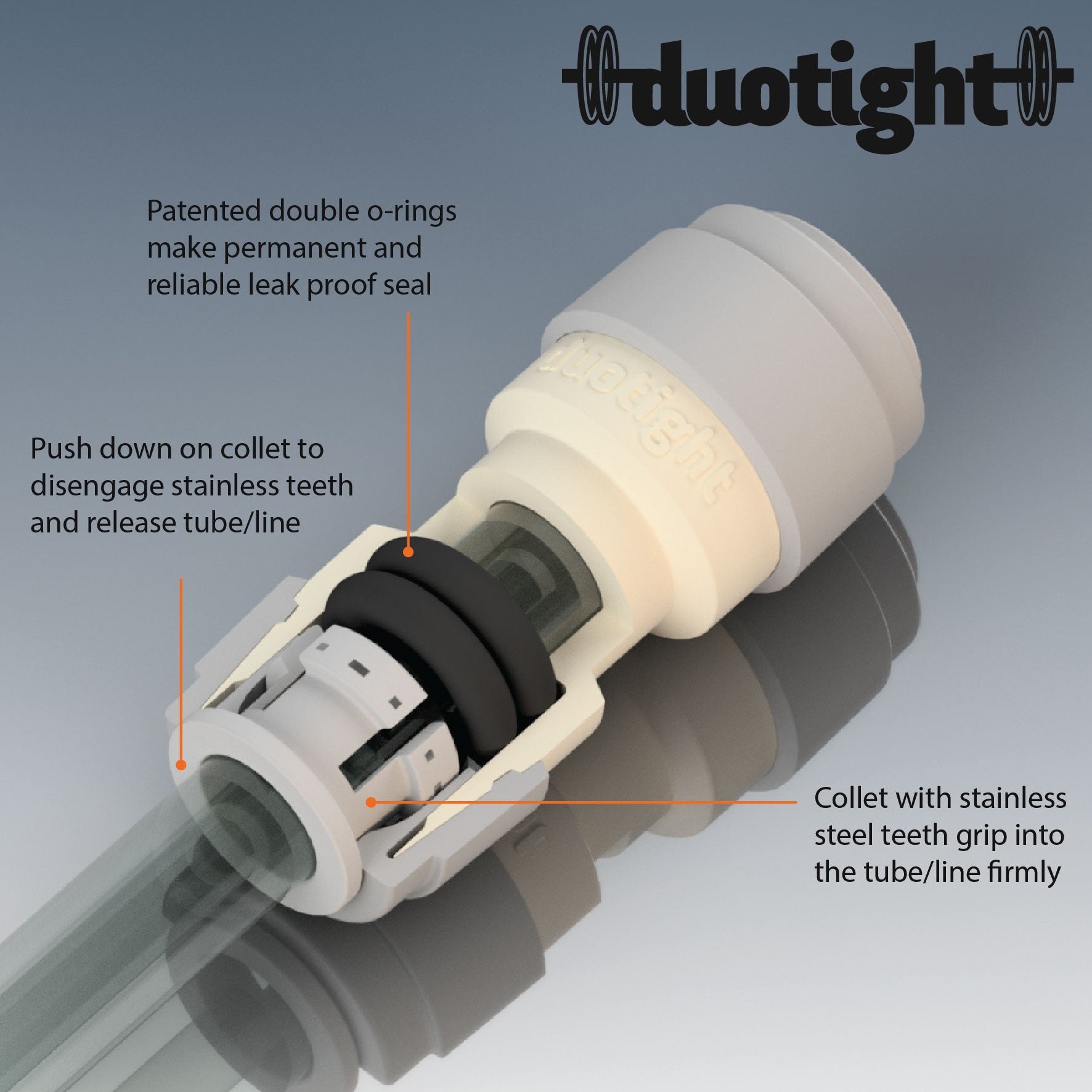

High Performance Double O-Ring Design:
The secret to Duotight’s superior sealing performance comes from the fact that they use not one, but two high-quality EPDM O-rings.  The double O-ring means they have literally twice the sealing surface when compared with other push-in fittings.  This makes them more reliable and significantly reduces the chance of leakage.

The double O-ring system also means that tubing can be bent at a much tighter radius without causing leaking issues, which can be an issue with other fittings.  This combination of factors makes Duotight the most reliable push-in fittings on the market.

EPDM offers excellent chemical resistance for a longer life span. When compared with silicone and vinyl, EPDM has much better gas transmission rates, better wear resistance, and is BPA-free.

No Clamps Necessary!
We recommend cutting your tubing straight, not on an angle, to ensure the line forms a complete seal. To remove the fitting simply push in the collet and the hose can be removed.


Features:
  • Insert tubing and firmly push to connect
  • Easily release tubing by pushing in the collet
  • Suitable for both gas & beverage applications
  • Made from food-grade acetal plastic
  • Double O-rings made from highly chemical resistant EPDM
  • Locking teeth made from stainless steel
  • Pressure rated to 150 psi
  • Temperature rated to 212°F (100°C)


Please note: exposure to chlorine will degrade the acetal plastic and stainless steel these fittings are made from. Do not use in contact with bleach or other chlorinated cleaning chemicals.

Kegland Part number: KL07030



Item # DUO112
Shipping Eligible for Free Shipping Program
Availability California - In Stock
Pennsylvania - In Stock
Weight 0.05 LBS
Community Q&A

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question and 1 answer
Why did you choose this?
MoreFlavor Store
Spares
Kevin Davis on Feb 10, 2023
To complete my Firmzilla setup
Steven Gray on Dec 15, 2022
Spares
Kevin Davis on Feb 10, 2023
Use with 3/8 od stainless tubing
Eric W on Jan 16, 2023
To complete my Firmzilla setup
Steven Gray on Dec 15, 2022
Easy to use.
Kevin Davis on Dec 6, 2022
for the temp twister!
Daniel S on Aug 11, 2022
Simple, clean, effective.
Brandon Yoder on Jul 7, 2022
i know it goes with temp twister
BrewDad on Jun 20, 2022
These fittings are amazing and better than using worm clamps.
Dan M. on May 24, 2022
Need to build a fermentation chilling set up.
John K on May 20, 2022
Goes with other pieces I bought
Bob D on May 3, 2022
I need to get to my chiller.
Fred W on Mar 31, 2022
simplify my life
Matt M on Feb 1, 2022
Because they are easy
CurtPick on Jan 25, 2022
I’m doing some glycol hose management and this elbows would be attached the the cooling coils. They seem pretty easy and straight forwardto use.
Fernando S on Jan 22, 2022
temp control
Valued C on Dec 22, 2021
To connect my temp twister to pump lines
Jordan A on Nov 6, 2021
I have an idea for cold fusion and only these elbows will work.
Ross Winner on Oct 28, 2021
Because it should work with the temp twister
RICHARD W on Jun 2, 2021
Fit other parts in order
David Fontaine on Dec 24, 2020
Connect my temp twister coil
Gregory S on Dec 18, 2020
Addition to the Fermzilla I have
Don C on Dec 15, 2020
For refrigerator waterline repair
Nathan J on Nov 25, 2020
Temp Twister Cooling Coil
Eric Mikos on Nov 5, 2020
for the temp twist
Brandon on Sep 23, 2020
Tap tower setup
Adam S on May 27, 2020
to route glycol thru temp twister coils we use with Fermzillas
Ryan B on Jan 9, 2020
Like the product and know I get consistent leakproof results everytime
David C on Oct 12, 2019
to avoid bending valpar hoses
Rodrigo H on Jun 25, 2019
Use with 3/8 od stainless tubing
Eric W on Jan 16, 2023
Easy to use.
Kevin Davis on Dec 6, 2022
Can these fittings also be used on stainless tubing?
Brett Demers on Oct 2, 2020
BEST ANSWER: Yes, I have them installed on a stainless steel temp twister cooling coil and have no leaks at all with the connections to the coil or hose
Reviews

5.0 / 5.0
3 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
3
0
0
0
0
Rated 5 out of 5
Quality fittings at a great price. Perfect fit with the temp twister chilling coil.
June 6, 2022
Purchased
1 year ago
Rated 5 out of 5

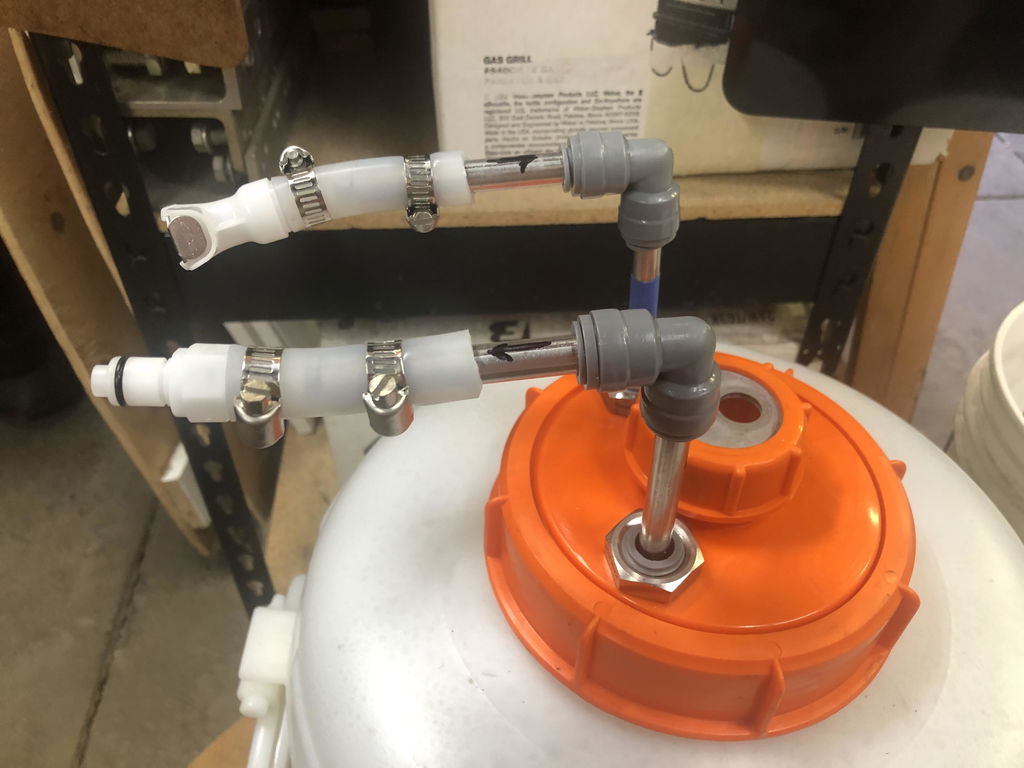

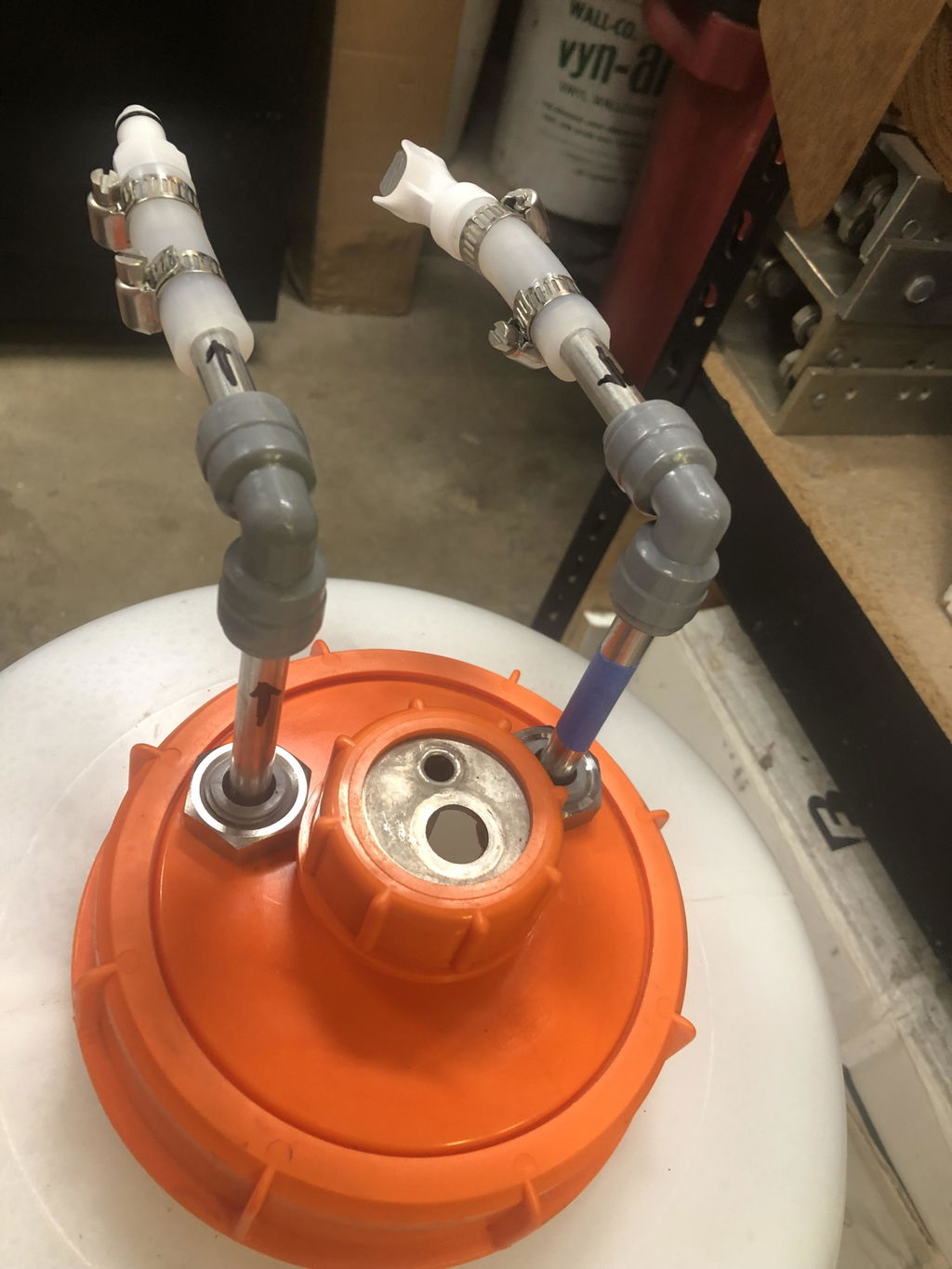

Lower Profile.
Easy to install, no leaks.
Changes tubing direction for lower profile with my Temp Twister
Showing quick disconnect fittings.
August 2, 2021
Purchased
over 2 years ago
Rated 5 out of 5
Works exactly as needed
I bought this to attach hosing to my Temp Twister cooling coil and it works flawlessly. No leaks and puts the hosing at the perfect angle for my glycol chiller.
