Duotight Push-In Fitting - 9.5 mm (3/8 in.) x 1/2 in. BSP
DUO115

Duotight Push-In Fitting - 9.5 mm (3/8 in.) x 1/2 in. BSP

In Stock
Delivers to ( change ) by as part of our Fast & Free Shipping.
Faster Shipping Available. Details.
Returns
60 day no hassle return policy. Details
Description

This Duotight fitting with 1/2" male thread is perfect for attaching to the Copper Counterflow Chiller (WC130) and using with 1/2" female threaded Camlock and QD fittings. Compatible with EVABarrier 9.5 mm OD tubing (D1719).

Duotight fittings are high-quality push-in fittings that seal tight and offer superior sealing capacity due to the double O-ring sealing design.

High Performance Double O-Ring Design:
The secret to Duotight’s superior sealing performance comes from the fact that they use not one, but two high-quality EPDM O-rings.  The double O-ring means they have literally twice the sealing surface when compared with other push-in fittings.  This makes them more reliable and significantly reduces the chance of leakage.

The double O-ring system also means that tubing can be bent at a much tighter radius without causing leaking issues, which can be an issue with other fittings.  This combination of factors makes Duotight the most reliable push-in fittings on the market.

EPDM offers excellent chemical resistance for a longer life span. When compared with silicone and vinyl, EPDM has much better gas transmission rates, better wear resistance, and is BPA-free.

No Clamps Necessary!
We recommend cutting your tubing straight, not on an angle, to ensure the line forms a complete seal. To remove the fitting simply push in the collet and the hose can be removed.


Features:
  • Insert tubing and firmly push to connect
  • Easily release tubing by pushing in the collet
  • Suitable for both gas & beverage applications
  • Made from food-grade acetal plastic
  • Double O-rings made from highly chemical resistant EPDM
  • Locking teeth made from stainless steel
  • Pressure rated to 150 psi
  • Temperature rated to 212°F (100°C)


Please note: exposure to chlorine will degrade the acetal plastic and stainless steel these fittings are made from. Do not use in contact with bleach or other chlorinated cleaning chemicals.

Kegland Part number: KL06927





Item # DUO115
Shipping Eligible for Free Shipping Program
Availability California - In Stock
Pennsylvania - In Stock
Weight 0.05 LBS
Community Q&A

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 3 questions Browse 3 questions and 6 answers
Why did you choose this?
MoreFlavor Store
Fits the Chiller and need Camlock adapter
Paul N on Dec 31, 2022
Upgrade from barb
Danny M on Jul 7, 2022
Fits the Chiller and need Camlock adapter
Paul N on Dec 31, 2022
To build a beer filter system.
Kyle Heon on Jul 29, 2022
Upgrade from barb
Danny M on Jul 7, 2022
Required
Scott S on Jun 29, 2022
Making a HERMS coil and it’s the best value
Adam M on Jun 17, 2022
Building a fermentation chilling system.
John K on Jun 4, 2022
I need to get to my chiller.
Fred W on Mar 31, 2022
I have part of a plan.
Ross Winner on Oct 22, 2021
Connect to Bouncer filter - I hope
John Schink on Aug 21, 2021
easy
Christopher R on Jul 30, 2021
making an adapter line to flush 8mm EVABarrier beer line using my pump
Antonio Martinez on Jul 2, 2021
Fit the counter-flow chiller I purchased, easy to use & install.
Mark C on Jun 29, 2021
MoreBeer recommended for chiller
Phil Halmers on Mar 16, 2021
Pair with wort chiller, didn’t get enough the first time.
Sydney J on Jan 30, 2021
Attach secondary regulator to tubing
Gregory S on Dec 18, 2020
easy to use
James H. on Dec 15, 2020
Counterflow chiller attachments
Wayne F on Dec 3, 2020
need for the chiller to work easily
David P on Dec 1, 2020
Temp Twister Cooling Coil
Eric Mikos on Nov 5, 2020
because i bought the twist coil and drilled into the lid and jacked it up. Should offer to drill holes for customer add an added cost.
For the counterflow chiller
Will K on Sep 28, 2020
Need
Christopher C on Sep 3, 2020
The ones that came with my temp twister coil leak no matter what.
Jimmy on Jul 17, 2020
For Copper Counterflow Chiller
Juan L on May 19, 2020
As a spare part for my counter pressure bottle filler.
To use with the Copper Counterflow Chiller with 3/8in Barbs
Sam T on Mar 9, 2020
Ease of use
Guy on Jan 13, 2020
goes with chiller
David F on Dec 7, 2019
Used with chiller.
Mick on Dec 6, 2019
Going to use it with an intertap faucet to make a duotight bottle filler.
David L on Dec 4, 2019
so I can attach things to things
Dov L on Dec 4, 2019
for counter flow chiller
ben b on Dec 3, 2019
Fine
Michael G on Nov 30, 2019
Like the product and know I get consistent leakproof results everytime
David C on Oct 12, 2019
Recommended for the chiller
Darrell Burk on Jun 20, 2019
To build a beer filter system.
Kyle Heon on Jul 29, 2022
Required
Scott S on Jun 29, 2022
Can you measure the outer diameter of the threads? Thank you
Colin Kelemen on Jan 31, 2020
BEST ANSWER: Hi Colin, we can't measure the threads with enough precision to give you a detailed answer, however, this is a 1/2'' BSPP fitting which would be designed to fit other 1/2'' BSPP fittings.
Hello, I recently purchased these for my counterflow chiller and I am fitting a 1/2" female NPT stainless steel quick disconnects to the BSP threaded end. The issue is I am getting leaks at this connection no matter how much Teflon tape I add. Are there any gaskets or fittings you could suggest that would solve this issue? Thanks
Alexander Dole on Nov 18, 2020
BEST ANSWER: The H928 and H920 o-rings are probably your safest bet. A couple metal washers on the duotight side can help take up any extra space and evenly distribute pressure around the o-rings.
The video shows Duotight on a taprite regulator. What size do I need? I assume this replaces the barbed fitting? Or can Duotight work with the barb on the regulator?
David Lipscomb on Jul 19, 2022
Reviews

4.0 / 5.0
4 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
3
0
0
0
1
Rated 1 out of 5
Will not work out of the box if you intend on replacing existing fermzilla chiller parts

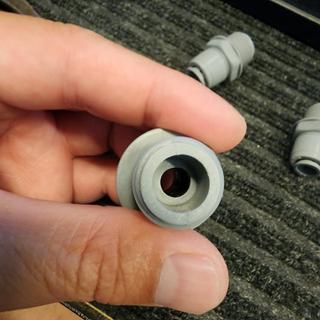

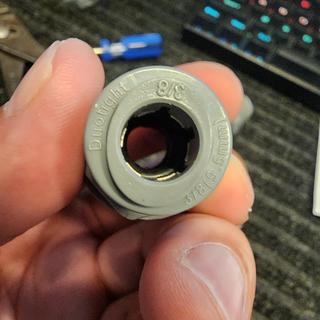

As it turns out, if you need to replace fermzilla chilling parts the 3/8 hole for the 3/8 tube doesn't pass all the way through, requiring for you to drill the otherside. I wasn't successful but I only tried one. Filed a return.
The 3/8 'hole' are too small to run a 3/8 chiller through it, it requires drilling unfortunately.
The 3/8 'hole' are too small to run a 3/8 chiller through it, it requires drilling unfortunately.
December 20, 2023
Rated 5 out of 5
Works exactly as needed
I have this screwed into my submersible pump in my glycol chiller and have no issues with pumping through the hose attached to it.
November 18, 2020
Purchased
over 3 years ago
Rated 5 out of 5
Works great on my counter flow chiller
January 15, 2020
Purchased
over 4 years ago
Rated 5 out of 5
Easy connection with no leaks. Can be removed easily.
July 6, 2019
Purchased
over 4 years ago
