DigiMash Upgrade Kit for 35L DigiBoil | Gen 1
BE504
DigiMash Upgrade Kit for 35L DigiBoil | Gen 1
DigiMash Upgrade Kit for 35L DigiBoil | Gen 1
DigiMash Upgrade Kit for 35L DigiBoil | Gen 1
DigiMash Upgrade Kit for 35L DigiBoil | Gen 1
DigiMash Upgrade Kit for 35L DigiBoil | Gen 1


DigiMash Upgrade Kit for 35L DigiBoil | Gen 1

In Stock
Delivers to ( change ) by as part of our Fast & Free Shipping.
Faster Shipping Available. Details.
Returns
60 day no hassle return policy. Details
Lowest Price Guarantee
This item has M.A.P. pricing so you can be confident you won’t find it for less.  Learn More.
Description

Please note: This kit is intended for use with Gen 1 35L DigiBoils (BE501 / BE502). It has a slightly larger wire support ring that may not fit Gen 2 DigiBoils (BE515 / BE516). Click here for the Gen 2 DigiMash Upgrade Kit.

Ready to upgrade your DigiBoil into a DigiMash? With the DigiMash upgrade kit you can convert the DigiBoil into a full blown electric all-in-one system. Includes false bottom, malt pipe with bottom screen, wire support, and malt pipe handle. Simply place the false bottom inside the kettle and install the malt pipe, fill with water and heat to your desired strike temperature, then add your grain and set your desired mash temperature on the digital controller. Once your mash is complete, lift up the malt pipe, drain the wort and sparge, then remove the malt pipe and proceed to boil.

Includes:

  • False bottom
  • Malt pipe
  • Wire support
  • Malt pipe handle
  • Malt pipe bottom screen

Installation & Use:

  • Place the false bottom inside the kettle
  • Install the wire support in the channel located at the top of the kettle
  • Place the mesh screen inside the malt pipe and attach the handle
  • Lower the malt pipe into the kettle so it rests on the wire support
  • Fill with strike water and heat to desired strike temperature
  • When desired temperature is reached, add grain and stir until well mixed
  • When your mash is complete, use the handle to lift out malt pipe and rotate 90° so the malt pipe feet sit on the wire support
  • Allow the wort to drain into the kettle and sparge the grain with warm water (165-175°F)
  • When you're done collecting your wort, remove the malt pipe and proceed to boil



Please note: only the 500-watt element should be used to increase mash temperatures when the Malt Pipe is in place. Using the higher watt element(s) with the Malt Pipe inserted may cause scorching of the grain.


Kegland Part Number: KL12980

Item # BE504
Shipping Eligible for Free Shipping Program
Availability In Stock
Weight 7 LBS
Customers Also Purchased

Fermentap Sparge Arm Assembly
$23.99

Wyeast | 3522 Belgian Ardennes | Beer Yeast | Activator Smack-Pack System™ | 100 Billion Cells
$13.99

Stainless Barb - 1/2 in. x 1/2 in. FPT
$5.99

Wort Chiller | Immersion Chiller | 25' x 3/8" Copper Tubing | Vinyl Tubing Included for Inlet/Outlet | Female Garden Hose Adapter
$84.99

KegLand MKII Magnetic Drive Pump | Center Inlet Pump Head | High Temp Plastic | 5 GPM | 25 Watt
$67.99

Hop Spider | Mesh Hop Filter | 0.4 mm Aperture | Stainless Steel
$34.99

Replacement SS Immersion Chiller for 35L BrewZilla
$64.99

Drawstring Mesh Bag - 31.5 in. x 21.7 in.
$7.99

BrewZilla Neoprene Jacket | 35L | Gen 3.1.1 & Older | DigiBoil Compatible | Improves Heating Times | Reduces Heat Loss | Removable for Faster Chilling
$24.99

Replacement Recirculation Arm for 35L BrewZilla
$22.99

35L Distillation Lid Replacement Gasket | 3mm
$4.99

Mash Paddle Stainless Steel - 26 in. (With Slotted Holes)
$14.99

DigiBoil Electric Kettle - 35L/9.25G (110V)
$199.99

Mash Paddle Stainless Steel - 24 in.
$12.99

35L DigiBoil Still Kit with Copper Pot Still Condenser
From $349.99 to $359.99

Premium Electric Home Brewing Kit
From $389.99 to $429.99

Coolant Connection Kit for Garden Hose Quick Disconnect (QD) AlcoEngine Stills
$24.99

AlcoEngine Copper Alembic Distillation Lid | 6mm Gasket
$93.49

BrewZilla Stainless Double Pulley Set
$19.99

Boiler Extension Kit | BrewZilla | DigiBoil | 35L | 9.25G
$49.99

You Might Also Need
Community Q&A
Powered by Emplifi
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 4 questions Browse 4 questions and 13 answers
Why did you choose this?
MoreFlavor Store
Great upgrade
Jason W on Jan 31, 2023
Like the way it fits into the DigiBoil, should be much easier than bag
David M on Nov 14, 2022
Great upgrade
Jason W on Jan 31, 2023
Husband wanted
Elizabeth H O on Dec 5, 2022
Like the way it fits into the DigiBoil, should be much easier than bag
David M on Nov 14, 2022
Convert digiboil to all-in-one brewing system
lance on Aug 22, 2022
Add to all in one system
william on May 4, 2022
I own a digiboil and wanted the upgrade
Stacy L on Jan 26, 2022
requested gift
Stanley E S on Dec 10, 2021
I have the kettle but want to upgrade.
Charles K on Oct 14, 2021
I want to use my Digiboil with grains!
David J G on Oct 10, 2021
All grain brewing
Daniel J on Sep 17, 2021
I have the 35l digiboil and I'll use it to brew beer
Edward D on Jul 2, 2021
Kids ads to whatever I have already
Jesse M on May 25, 2021
Upgrade for current Digiboil unit
Phil H on Mar 16, 2021
Want to make grain only beer
Matthew S on Feb 14, 2021
All Grain
Kurt S on Feb 10, 2021
To all grain brew in Digiboil
Adam C on Jan 13, 2021
For my brother for xmas
Travis B on Dec 10, 2020
Increase ease of double mashing in Grainfather
Kevin H on Dec 10, 2020
Have wanted it for a while
Ryland M on Dec 2, 2020
TO MAKE BEER?
Diego Alberto Wulf B on Nov 21, 2020
Because it
Arthur Frasik, I on Nov 14, 2020
Upgrading my digiboil to do all grain
Robert G on Aug 11, 2020
Next step in my process
R.J. S on Aug 10, 2020
Great price to upgrade my Digiboil.
Robert B on Nov 4, 2019
Covert DigiBoil to all in One for inside winter brewing...
Jay L on Oct 18, 2019
This item completes my electric kit
Dr. Gary J on Sep 30, 2019
Husband wanted
Elizabeth H O on Dec 5, 2022
Convert digiboil to all-in-one brewing system
lance on Aug 22, 2022
How high does the false bottom raise the Malt Pipe from the bottom of the kettle to clear the top of the spigot?
Vincent C on Jul 16, 2020
BEST ANSWER: The Digiboil itself comes with a false bottom thats already about 1 1/2" off the bottom.
The bottom of the Malt pipe hangs about 3 1/2" from the bottom (or about 2" above the existing false bottom)
This equates to about 1.75 gallons of water UNDER the malt pipe while mashing.
The malt pipe is about 1" smaller diameter as well.
Add up all the water not in contact with the grains, and you pretty much have to mash at full volume to keep the grains under water. (can't sparge much since you're mashing at almost full volume)
This results in a pretty low efficiency in my experience.
I still like to use it sometimes because of its simplicity and ease of cleaning/use.... just don't expect to make any high gravity beers with it.
Just got this, no instructions where does the eye hook go?
Ken H on Mar 6, 2021
BEST ANSWER: The only thing I've ever used it for is to help remove the false bottom. I see no other function for it. I actually quit using the false bottom too. Unless you're using a bag instead of the malt pipe, or tossing whole leaf hops into the boil It doesn't serve any useful function .
I'm considering getting this and using a pump to recirculate. Does this have an overflow similar to the robobrew?
Jonah D on Oct 2, 2019
BEST ANSWER: No the malt pipe doesn't have the overflow pipe.
Will this fit / work with the grainfather?
Joseph T on Oct 1, 2019
BEST ANSWER: Yes it will
Reviews
Powered by Emplifi
4.5 / 5.0
11 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
8
1
1
1
0
Rated 2 out of 5
Needs redesign
I was thinking this would be a good thing but after first use I think I will have to put a brew bag inside next time. They should have maybe welded screen all the way around instead of having it loose. A lot of grains got through the bottom. Big Mess
May 26, 2023
Rated 5 out of 5
Excellent quality
This is a great addition to my Digiboil kettle, I just wish I had noticed the bundle instead of purchasing individually. Could have saved $8 bucks
December 1, 2022
Purchased
 over 2 years ago
Rated 5 out of 5
DigiMash Upgrade Kit for 35L DigiBoil
Did exactly what I wanted it to do. Mash & sparge with ease. Grain column comes apart for easy cleaning. While at first the handle seemed a little insecure, in actual use it was very stable when lifting the column out of the wort. Easily removeable too.
November 28, 2022
Purchased
 over 2 years ago
Rated 4 out of 5
Cleaner wort, lower efficiency
Finally upgraded after using the BIAB method for a few years with the digiboil. It now functions as a low-cost all-in-one system. The mash upgrade kit made a HUGE improvement in the clarity of post-boil wort, but my efficiency dropped at 10 points from squeezing the bag (it still sits at a respectable 70-75%). Perhaps it will improve with more use.

With the release of the Gen 4 brewzilla, (and rising costs due to inflation), I’d probably spring for the gen 3 brewzilla if starting from scratch in the all-in-one electric brew system.
September 4, 2022
Purchased
 over 2 years ago
Rated 5 out of 5
Use it with my megapot, works well
June 14, 2021
Purchased
 over 3 years ago
Rated 5 out of 5

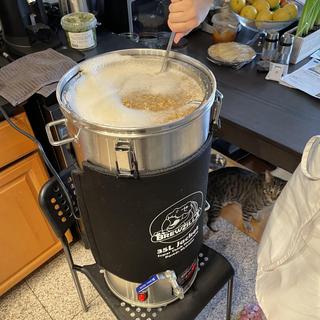

I’m satisfied 100% I brew my first all grain Belgian Ale and DigiMash was very convenient to work with.
User submitted image
Added Apr 8, 2021
April 8, 2021
Purchased
 over 3 years ago
Rated 5 out of 5
Highly Recommend
This is an awesome setup for homebrew. Definitely worth the bargain of skipping out on an individual mash tun. I’ve had several brewing partners (always brew with a friend) whom have worked for big time breweries and they’ve given multiple praises with this setup.
January 20, 2021
Purchased
 over 3 years ago
Rated 5 out of 5
Fantastic upgrade
This product has been on back order all over the place. MooreBeer was the first to have it back in stock at a great price. I'll be putting it to use on my next days off.
June 28, 2020
Purchased
 over 4 years ago
Rated 3 out of 5
Good idea but... Bring a grain bag
Seemed like my prayers were answered when they added this kit in to turn that wonderful digiboil kettle into a all in one system. Parts seemed fine but I'm thinking the tolerances are off on mine: There's enough gap from the malt pipe bottom screen that I ended up having way too many grains floating around in my wort. Thinking I might have the local store check mine out to see if it might be defective, if not I'm going to definitely add a grain bag into the malt pipe next time, it's worth it alone to be able to hoist up your grain bag and let it drain, but I think 5 gallon BIAB recipes push the limits of this setup.
January 27, 2020
Rated 5 out of 5
Great Addition
I've been using the Digiboil kettle as part of a 2 vessel MIAB (Mash in a Bag) system since last March with great results. When you offered this upgrade I didn't hesitate to order it.

I'm absolutely amazed at how well it holds mash temperature. I mashed at 152F for my last batch and the element only came on once to increase the temperature in 75 minutes. My efficiency was great too.

No bells and whistles, but this is a solid all in one system.
User submitted image
User submitted image
User submitted image
December 1, 2019
