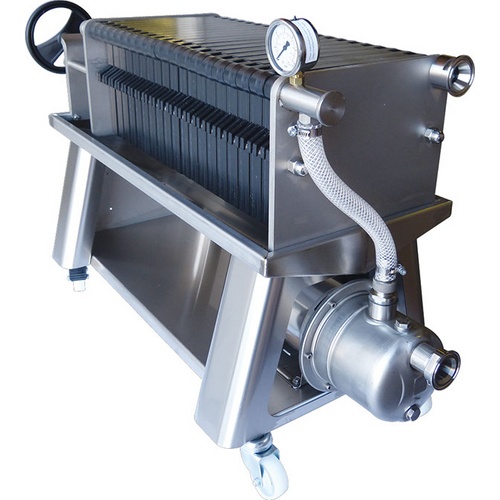

Commercial plate filter featuring 41 20cm x 20cm plates. Included 110v 1/2hp, stainless motor will pump wine from your container and push it through the filter and into your aging tank or bottle filler.
Features:
304 Stainless Steel Construction
Four Casters for easy movement. Two of the casters have locks
Built-in centrifugal stainess steel pump with on/off switch.
41 Food-Grade Noryl plastic plates included.
Double filtration kit available
Built-in pressure gauge
Maximum pump pressure is 2.5 bar (35 p.s.i.)
Up to 1200L (317 gal) Flow rate per hour
940x480x590mm/37x19x23 inches
114 lbs
1.5" Tri-Clamp inlet and outlet
Pads should be placed in the machine rough-smooth-smooth-rough
Minimum number of plates that can be used is 30
Shipping Limitation: This item does not qualify for free shipping.
The injection molded parts of this filter show that the molds producing them have either not been properly maintained or are well beyond their end of life. The amount of mold flash and registration slop is considerable. While not completely unusable, this product is far from what I would consider acceptable.
