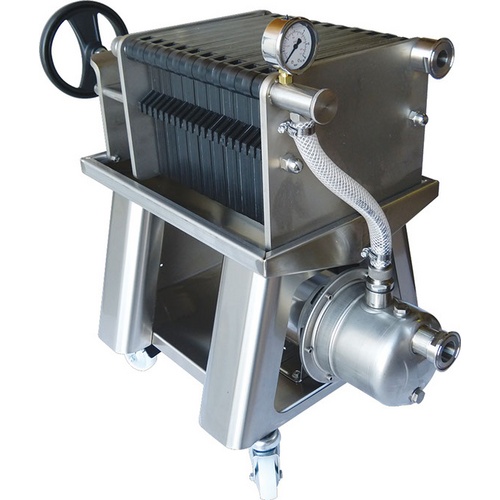

Marchisio Wine Plate Filter | Noryl Plates | 20x20 | 20 Plate | Stainless Rolling Cart | 600L/h | 110V

Marchisio Wine Plate Filter | Noryl Plates | 20x20 | 20 Plate | Stainless Rolling Cart | 600L/h | 110V

Please select from the following option(s) to see pricing and availability.
Marchisio Wine Plate Filter | Noryl Plates | 20x20 | 20 Plate | Stainless Rolling Cart | 600L/h | 110V
$1,999.99
In Stock
Delivers to ( change ) by
Faster Shipping Available. Details.
Returns
60 day no hassle return policy. Details
$1,999.99
Description

  • Rolling cart wine plate filter
  • Plates made from food-grade Noryl
  • Built-in stainless centrifugal pump
  • Built-in pressure gauge
  • 1.5" tri-clamp inlet/outlet
  • 600L/h wine filtering capacity
  • Made in Italy by Marchisio

Small commercial plate filter that will accomodate 20 20cm x 20cm plates. Included 110v 1/2hp, stainless motor will pump wine from your container and push it through the filter and into your aging tank or bottle filler.

Features:

  • 304 Stainless Steel Construction
  • Four Casters for easy movement. Two of the casters have locks
  • Built-in centrifugal stainess steel pump with on/off switch
  • 21 Food-Grade Noryl plastic plates included.
  • Double filtration kit available
  • Built-in pressure gauge
  • Maximum pump pressure is 2.5 bar (35 p.s.i.)
  • Up to 600L (158 gal) Flow rate per hour
  • 620x420x560mm/24x16.5x22 inches
  • 90 lbs
  • 1.5" Tri-Clamp inlet and outlet
  • Pads should be placed in the machine rough-smooth-smooth-rough




Shipping Limitation: This item does not qualify for free shipping.

Shipping Limitation: This item ships freight only


Community Q&A

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 3 questions Browse 3 questions and 2 answers
Why did you choose this?
MoreFlavor Store
my husband is attempting to expedite the filtering process at our winery
Cathy K on Sep 8, 2021
my husband is attempting to expedite the filtering process at our winery
Cathy K on Sep 8, 2021
What I wanted at a price I liked
Derek A on Sep 20, 2019
What I wanted at a price I liked
Derek A on Sep 20, 2019
Says double filtration kit available, link to info?
Eric James Hemmer on Sep 26, 2020
BEST ANSWER: The double filtration kit for this 20 x 20 filter is part number we906n.
What is the pump outlet fitting size?
Robert Gallasch on Nov 17, 2020
BEST ANSWER: The outlet fitting of the pump is 1 inch female pipe thread. Then attached to it is the hose assembly which uses 7/8" pvc tubing.
We're using this to test on a smaller batch (7gal bucket, essentially), what accessory clamps, hoses, etc do I need to purchase?
Vincent J Barletto on Dec 12, 2022
