KegLand T.C. Breakdown Brewing Pump Head | MKII Pump Head Upgrade Kit | Stainless Steel | 3" Tri-Clamp x 1.5" T.C. Ports
PMP506

KegLand T.C. Breakdown Brewing Pump Head | MKII Pump Head Upgrade Kit | Stainless Steel | 3" Tri-Clamp x 1.5" T.C. Ports

In Stock
Delivers to ( change ) by as part of our Fast & Free Shipping.
Faster Shipping Available. Details.
Returns
60 day no hassle return policy. Details
Description

  • Upgrade your MKII Magnetic Drive Pump with a stainless steel pump head that quickly & easily installs via 3" tri-clamp
  • T.C. connection allows the pump head to be oriented at any angle in a full 360-degrees
  • Pull ring PRV at the pump outlet makes it easy to purge air and prime the pump before each use
  • Inline flow path for smooth integration into your brewery while keeping your tubing lines tidy
  • Stainless steel head with 1.5" T.C. ports to attach your preferred 1.5" tri-clamp fittings

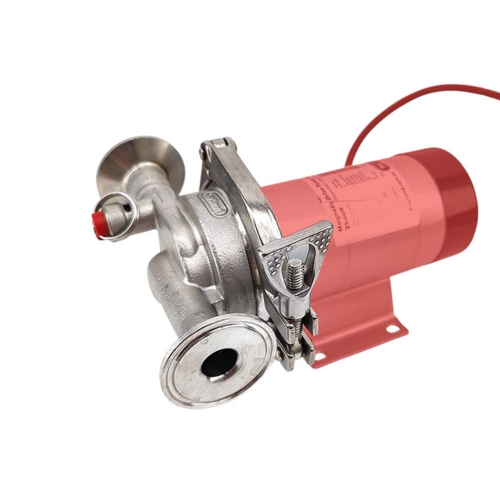

Upgrade your MKII Magnetic Drive Pump with a stainless steel inline pump head! The TC Breakdown Brewing Pump Head provides several advantages over the standard MKII pump head, first and foremost being it's made of stainless steel instead of plastic. This allows for much easier installment of fittings without the risk of breaking off the plastic inlet or outlet. It will also convert the pump head from "Center Inlet" to "Inline" flow path which can make it much easier to integrate into your brewery and keep your brewing hoses tidy. At the outlet of the pump, there is a very handy pull ring PRV that allows you to bleed liquor or wort from the pump head to release trapped air and prime the pump. But what some MKII users might find most exciting about this upgrade kit is that it converts the pump head connection to 3" tri-clamp! Not only do you have a full 360-degrees to orient the pump head any which way, cleaning the pump after use has never been easier—just pop off the tri-clamp, wash out the pump head, and clamp back on.

This upgrade kit is only compatible with the 25-Watt MKII pump (PMP500). It will not fit the larger 65-Watt MKII or the Blichmann Engineering RipTide pump. If you don't already own the 25-Watt MKII, you can purchase it with the T.C. pump head already installed here.

Tri-Clamp Pump Head
The T.C. pump head can be removed quickly and easily using the 3" tri-clamp. This means no drivers or power drills are needed to back out the six Phillips head screws that mount the pump head on the standard version of the MKII. Whip the head off in a flash to clear out spent grain, hop material, or clear a blockage. Attaching the pump head with a tri-clamp also allows the head to be rotated at any angle in a full 360-degrees. This makes it easy to configure the plumbing to your unique brewery setup.

Inline Design
An "inline" pump head simply means the input and output are on a straight horizontal line with one another which can make it easier to integrate into your brewery setup. If you're using a 3-vessel horizontal system, the inline pump head will make it easier to keep your hoses neat and tidy compared to pumps heads with a center inlet.

PRV Purge Valve
The corny keg style PRV will make priming the pump a breeze. Simply let bleed the pump head to purge air out before turning the pump on and you'll avoid any cavitation issues. The PRV also acts as a safety so you do not over pressurize your pump head or brewery system.

304 Stainless Steel
The entire pump head is made from 304 grade stainless steel so it's highly resistant to chemicals, heat, and physical abuse. The 1.5" tri-clamp ports can be used to attach barbs, quick disconnects, camlocks, or any 1.5" tri-clamp fittings you prefer.

KegLand Part Number: KL36924

Item # PMP506
Shipping Eligible for Free Shipping Program
Availability California - In Stock
Pennsylvania - In Stock
Weight 2 LBS
