US Made industrial glycol chillers available in a wide range of tonnages.

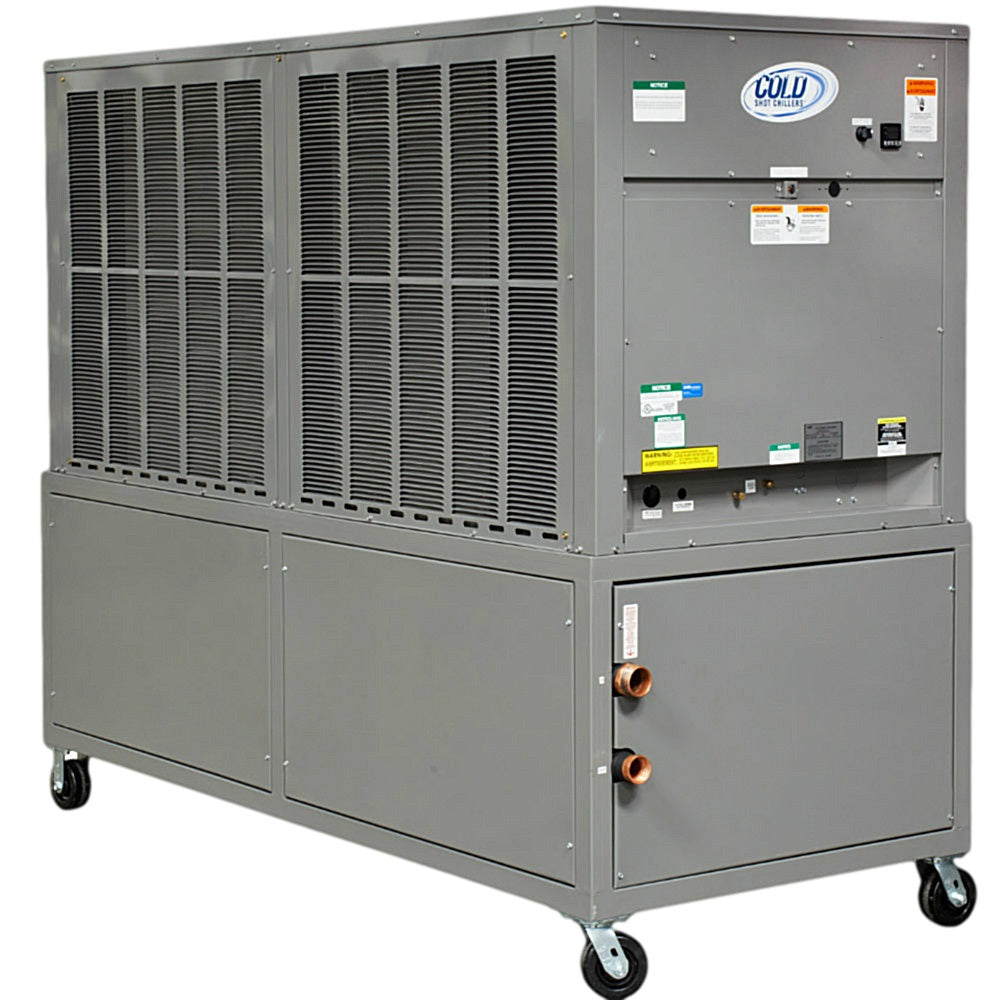

Cold Shot Chillers are some of the most dependable and economical chillers on the market. These portable air-cooled chillers are built in the USA with time-proven components, and are supported 24/7 by a network of techs in the US.
These chillers are built to provide a lifetime of service, allowing precise temperature control during all aspects of the wine or beer making process. Powerful compressors combined with a large reservoir means huge cooling capacities, able to keep you running through the hottest months.
Cold Shot Chillers are built with high quality components designed for trouble-free use, but should an issue occur, technical support is available at all times, and if necessary a technician familiar with your unit can come service it on site.
Uses in Beer Making:
-
Temperature control for fermentation, heating or cooling
-
Temperature control for storage
-
Temperature control for packaging
-
Air conditioner
-
Barrel rooms
-
Cold box
Uses in Winemaking:
-
Cooling of must for cold soaks, slow starting ferments
-
Cooling must for cold soaking or slow starting / low temp ferments
-
Cold stabilization of wine
-
Controlling fermentation temperatures
-
Maintaining storage temperatures in tanks / barrels
-
Controlling cellar or winery air temperatures with a fan unit
Features:
-
15 tons (180,000 BTU/hr)
-
80 Gallon Stainless Steel Reservoir Tank with Lid
-
This Low Temp Model has a leaving fluid temperature range of 20 - 70° F.
-
Rated to 0°F ambient temperature*
-
2” MNPT Inlet and Outlet
-
Stainless Steel 3 HP Centrifugal Pump outputs 60 GPM at 30 PSI
-
230 v 3 phase power (MCA 71.8) Required
-
Casters Included (two swivel locking and two fixed)
-
Large Reservoir easily filled from outside, and level indicated with sight gauge
-
1 Year Parts Warranty
-
5 Year Warranty on Compressor
-
Welded steel powder coated frame and full metal cabinet with copper piping connections
-
Digital Temperature controller with Self-Diagnostic control system
-
Rugged Protection, while still easy to maintain and Wash Down
-
High Flow Pump, Long Life, Dependable units!
-
Stainless Steel Plate Evaporators Vacuum brazed with Copper
-
Dependable Copeland Welded hermetic Scroll Compressors
-
88"x40"x70"
-
1600 lb
-
UL Certified
Please Note: This unit REQUIRES 230 v Three Phase power (MCA 71.8) and will not function on anything else. Please confirm that you have the proper power for this unit before purchasing, and plan to have a qualified electrician wire the necessary plug to the cord.
*Please Note: This unit is rated for ambient temperatures as low as 0°F. If you require a subzero temperature rating, please contact our customer service department to request a special order.
Item # |
GLY315 |
Weight |
1700
LBS
|
Drop Ship: This product will ship directly from the supplier. Delivery may take 1–4 weeks depending on the vendor. Blichmann products are typically shipped in under a week.
Shipping Limitation: This item does not qualify for free shipping.
Shipping Limitation: This item ships freight only
