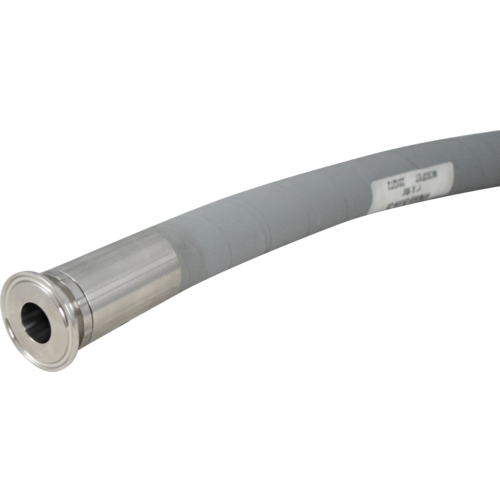

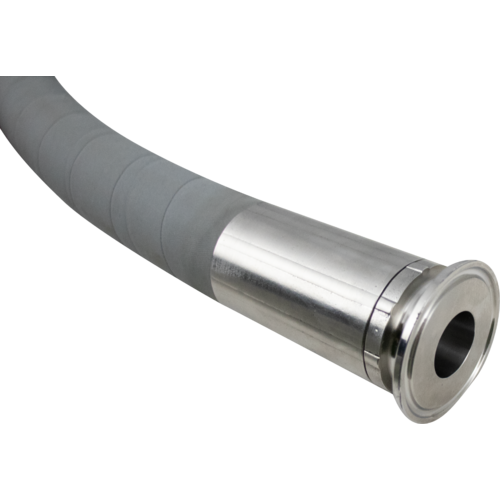

ForgeFit® Premium Crimped Tubing Sets | Novaflex® Connoisseurs Beverage Hose | 1" ID x 1.5" T.C.

ForgeFit® Premium Crimped Tubing Sets | Novaflex® Connoisseurs Beverage Hose | 1" ID x 1.5" T.C.

Please select from the following option(s) to see pricing and availability.
Size:
Description

  • Kink and crush resistant suction & discharge rubber hose, designed for demanding applications that require high temperature and chemical resistance
  • ForgeFit barbed connector and crimp sleeve system are designed to provide a long life and easy to clean hose connection
  • Hose barb skips the first barb to provide a gapless and smooth transition to the tubing
  • Our sleeves are machined from pipe to meet sanitary standards, avoiding the uneven compression and hard points caused by welding, and offering a superior surface finish that is both more hygienic and visually appealing
  • 1" ID tubing is sometimes preferred to 1.5" as it is easier to handle and decreases product loss
  • Novaflex Connoisseurs Beverage Hose Meets 3-A (cert# 1803), FDA & USDA standards

Now selling tubing sets made from ForgeFit fittings and Novaflex Connoisseurs food & beverage tubing that is assembled in the MoreBeer! Pro production shop in Pittsburg, California. The options above are already assembled and ready to shop.

Novaflex is a special kink and crush resistant suction & discharge rubber hose, designed for those demanding applications requiring a product that meets 3-A (cert# 1803), FDA & USDA standards. This tube is for non-oily applications. Designed to meet the temperatures and chemical resistance associated with "cleaning in place" systems. The ultra smooth microbe resistant tube is built on special stainless steel mandrels for cleanliness.

The ForgeFit barbed connector and crimp sleeve system are designed to provide a long life and easy to clean hose connection. The long barb and the long sleeve provide a secure crimp without crushing the hose. Triple banding can slip or damage the hose during installation and has sharp edges. The ForgeFit hose barb skips the first barb to provide a gapless and smooth transition to the tubing to make it easier to keep clean. Our barb has a stop to ensure the hose does not creep closer to the clamp in service.

Don't forget to add hose bumpers to your order to protect your investment! The ForgeFit® Silicone Hose Bumper is designed to protect your hose ends by absorbing the impact of the hose end hitting the floor when it's dropped. The unique built in handle makes it easier to grab and saves your back.

Novaflex Construction:

  • Tube: White Chlorobutyl
  • Reinforcement: Multiple plies of polyester tire cord & dual monofilament helix
  • Cover: Gray EPDM abrasion resistant
  • Temperature Range: -40° to 240°F (CIP to 248°F)
  • Not for continuous steam service





in.

mm

ID

25.4

OD

1.64

41.65

Bend Radius

3.5

88.9
