EVABarrier Double Wall Draft Tubing - 4 mm ID x 8 mm OD

EVABarrier Double Wall Draft Tubing - 4 mm ID x 8 mm OD

Please select from the following option(s) to see pricing and availability.
Quantity:
Description

If you're looking for a high-quality draft tubing to take your system into the 21st century, EVABarrier is the clear choice. This double walled tubing offers superior protection against oxidation, CO2 loss and microbial growth. Plus, it's BPA and PVC free! EVA tubing is the future of draft line for professional applications, and now you can rig up your home system with the same first-class tubing.

The 4 mm (5/32") ID size is perfect for homebrew draft applications where only a short beer line is needed. We recommend using 5-6 ft. per line for adequate flow resistance.

Outer Barrier
The outer barrier is made from EVA material and provides a decent stiffness to the tubing while still remaining pliable. This not only makes EVABarrier extremely kink resistant, it also makes it the best tubing to be used with Duotight, John Guest, and other push-in fittings.

Inner Barrier
The inner barrier is made from a proprietary polymer that acts as an excellent gas barrier. You can rest assured that your beer will be better protected from oxygen exposure, as well as CO2 loss. Your beer will stay fresher for longer and not loose carbonation like with other draft line.  With other beverage line, you may notice that beer sitting in the line for an extended period will start to taste flat and/or oxidized.  EVA Barrier tubing is unquestionably better in this regard and you will notice a significantly improved freshness of your beer, especially if it's been sitting in the lines for a while.

Due to the high density and smooth nature of the EVABarrier inner wall, the internal surface of the tubing is remarkably smooth and almost completely impermeable.  This makes it difficult for bacteria and other microbes to attach to the inside surface of the tubing. Just another way EVABarrier is looking out for you and your beer!

Specifications:
  • Inner Diameter - 4 mm (5/32")
  • Outer Diameter - 8 mm (5/16")
  • PVC, BPA , and Plasticizer Free*
  • Outer wall prevents oxidation and CO2 loss
  • Smooth inner wall prevents microbial growth build-up


*EVABarrier does not contain plasticizers, or phthalates, that are used to make PVC flexible. These plasticizers are known to leach out into the beer over time and have adverse health effects.

Kegland Part number: KL06224

Inner Diameter5/32 in.
MaterialEVA Barrier
FunctionDraft
Community Q&A

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 10 questions Browse 10 questions and 74 answers
Why did you choose this?
MoreFlavor Store
Need it
Jeffrey J on Nov 30, 2021
I've heard good things about EVABarrier, and the 4mm ID means I can flow control with less line length
Scott L on Nov 24, 2021
Need it
Jeffrey J on Nov 30, 2021
Need this for duo tight fittings
Greg L on Nov 25, 2021
I've heard good things about EVABarrier, and the 4mm ID means I can flow control with less line length
Scott L on Nov 24, 2021
Recommended and want to use a shorter length line with the flow control faucet.
Thomas Gariety on Nov 24, 2021
Changing my gas distribution system.
Joe Ormand on Nov 15, 2021
I'm going to build a keezer.
Joseph M on Nov 9, 2021
Fits the Duotight Push-In Fittings.
Dan H on Nov 3, 2021
Pressure transfer to keg
garrett shuck on Nov 2, 2021
Used to create a beverage connection between All Rounder and Corny keg
David B on Oct 23, 2021
brulosophy told me to
Jonathan D on Oct 21, 2021
rebuilding draught innards after moving and sitting for a long time.,
Mark W on Oct 8, 2021
Adding another tap
Jason W on Sep 21, 2021
Tube
peter pichiotino on Sep 17, 2021
upgrading lines
Damian H on Sep 7, 2021
Overhauling my brewhouse
Ezra D on Sep 7, 2021
For making beer lines in my kegerator
Neil D on Aug 20, 2021
rebuilding system
C Stewart on Aug 18, 2021
Oxygen impermeable tubing
Sean on Aug 6, 2021
Must have when using DuoTight fittings
Randy O on Jul 7, 2021
4mm ID allows a shorter line length
Antonio Martinez on Jul 2, 2021
Better beer line than vinyl
Russell Bonsall on Jun 29, 2021
Keg to keg transfers
Joseph G on Jun 17, 2021
Upgrading beer lines.
Carl S on Jun 9, 2021
Want extras
Nicholas C T on Jun 3, 2021
Oxygen Barrier
Tim P on Jun 2, 2021
the best
Miguel Ugarte on Jun 2, 2021
Always good to have more on hand.
Tysen Bibb on May 29, 2021
i need it
david Vepkhvadze on May 26, 2021
i need it
david Vepkhvadze on May 26, 2021
simple fast connections, resistant to bacteria
Brandon M on May 19, 2021
Recommended
Mark Orlando on May 14, 2021
I need long tubing to serve at a lower pressure while keeping the keg of sparkling water pressurized high.
Valued C on May 1, 2021
Changing over from stainless flare fittings to duotight.
Nick Parker on Apr 21, 2021
need kit
Kevin P on Apr 13, 2021
Came recommended
Debbie D on Mar 23, 2021
wanna try it
jason p on Mar 11, 2021
Reviews said this is THE draft line tubing
matthew h on Mar 5, 2021
to use as a spunding valve
Valued C on Mar 5, 2021
Healthier
Jeremy H on Mar 3, 2021
replacement draft lines
Matthew S on Mar 2, 2021
more tubing
David F on Feb 24, 2021
I ordered 5/16 tubing thinking it would fit the duolight keg filler with a Blowtie. Nope.
mark a on Feb 23, 2021
Upgrade beer fridge from old to new Beer line
Gregory K on Feb 20, 2021
Switching keg gas lines to Duotight fittings
Daniel W on Feb 9, 2021
Need the
Wayne B on Feb 8, 2021
For Beverage dispensing inside a kegerator.
Sean W on Feb 3, 2021
Couldnt tell ya
Zachary Ian C on Jan 30, 2021
Interested in moving away from vinyl tubing
Will S on Jan 13, 2021
Purchased a Kegmenter. Need to dispense from it.
Alex A on Jan 12, 2021
Not enough hose.
Brian S on Jan 7, 2021
Need this for duo tight fittings
Greg L on Nov 25, 2021
Recommended and want to use a shorter length line with the flow control faucet.
Thomas Gariety on Nov 24, 2021
Does this fit on 1/4" barbs that ball lock disconnects frequently come in?
Trevor Mack on Jul 29, 2019
BEST ANSWER: The 4 mm ID tubing will be too small. The 5 mm will fit, though it will be very snug.
EVABarrier Tubing - 5 mm ID x 8 mm OD - 39 ft. Roll
EVABarrier Tubing - 5 mm ID x 8 mm OD - 39 ft. Roll
What is the restriction amount on this size and type of tubing?
Robert Zimmer on Apr 29, 2019
BEST ANSWER: Hi Robert - Take a look at this link: https://www.kegworks.com/blog/determine-right-pressure-for-your-draft-beer-system/

4mm x 8mm = 5/32" x 5/16"
Can you connect this 4mm ID tubing to a 3/16" tailpiece? I would like to use this as beer line with my intertap faucets, replacing my current 3/16" beer line. Thanks.
Valued C on Apr 23, 2019
BEST ANSWER: Hi Larry - the 4mm tubing is only 1/16" smaller than 3/16" so if you heat up the end of the tubing before installing, there shouldn't be a problem.
How do you clean EVA line? Is BLC safe?
Andrew Wayland on Jun 6, 2019
BEST ANSWER: Hi Andrew - We recommend cleaning the beer line as you would with any other tubing.
What psi (approximate) should I set my psi to for these lines? I know with a smaller diameter line you would want a lower serving psi to avoid foaming.
Michael Mascianica on Sep 3, 2020
BEST ANSWER: I think of this differently. I adjust the length of the beer line and keep the pressure set to one that is appropriate to the level of carbonation I want. For my old beer line (3/16 I believe), 10 feet worked well, but with the 4mm EVA tubing, I run only 6ft. Works well for me.
Hi. Is this recommended for wine, cider and nitro coffee? Thank you
Marco Jefe on Jul 11, 2020
BEST ANSWER: Should work fine for any of those products.
The wine and the coffee could possibly leave residue though - might not be able to use those lines for other products later.
Can I use this size 4mm ID x 8mm OD for both the gas and beer lines?
Christopher Woodley on Jul 27, 2021
BEST ANSWER: Certainly. Many folks I know have done exactly that. I went with 4mm for beer and 5mm ID for gas only because it's a bit easier to slide onto the barbs of my 1:8 manifold that I didn't want to replace with an MFL version.
What is the recommended inner diameter shank bore for this tubing? 3/16? 1/4? Does it matter?
Jeffrey Hasterok on Oct 6, 2020
BEST ANSWER: 3/16" is closer, but the EVA tubing is very stiff. Better off to use an adapter like this:
https://www.morebeer.com/products/duotight-pushin-fitting-8-mm-516-58-fpt.html
Any suggestions for line length for seltzer water? Probably about 30 psi @ 38-40*F. I'm SWAGing about 15 feet, but have no idea really.
jeff royster on Sep 14, 2019
BEST ANSWER: While both of the answers discussing foaming are correct, as far as that goes, you still want to consider your dispense speed - a flow rate of about one pint per second is gotten by having about one psig residual after all restrictions are taken into account. The restriction on this stuff is about 2.9 psig per foot.
30 psig - 1 for serve speed=29 psig; .5 psig for shank and faucet (typically) 28.5; .5 psig for every foot from center of keg to tap - for me that's about 2-3 feet, so, 1-1.5 psig =27 psig / 2.9 = 9.31ft and a bit.
Reviews

4.9 / 5.0
40 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
37
3
0
0
0
Rated 5 out of 5
Good Product!
This is easy to use and very fast in setting up the CO2 line in your Kegerator!
October 22, 2021
Purchased
1 month ago
Rated 5 out of 5
Great tubing and duotight system
September 14, 2021
Purchased
5 months ago
Rated 5 out of 5
Great product. Switched all my beverage lines to this.
August 9, 2021
Purchased
4 months ago
Rated 5 out of 5
Beer’s - a - flowing !

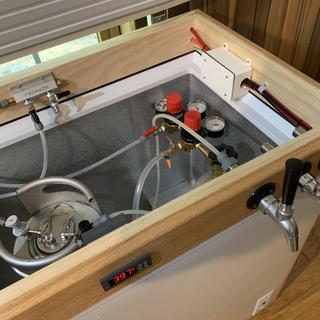

Used with the duotight fittings. Couldn’t have been any easier to finish off the new keezer.
User submitted image
Added Jul 6, 2021
July 6, 2021
Purchased
5 months ago
Rated 5 out of 5
Works great!! I used it to extend the blow off side of the blowtie sounding gauge
June 25, 2021
Purchased
5 months ago
Rated 5 out of 5
Great tubing
The EVA tubing is very easy to work with and provides an oxygen barrier. That is a perfect combination for a keg setup.
June 23, 2021
Purchased
6 months ago
Rated 5 out of 5
Evabarrier tubing
Easy to use makes for a neat job made for head free beer serving Write your review here. It must be at least 20 characters long. Consider whether you would recommend this product and what you like or dislike about it.
June 20, 2021
Purchased
6 months ago
Rated 5 out of 5
Great tubing
Much much better than my old tubing. I replaced very stiff tubing that also had to be twice as long.
June 16, 2021
Purchased
6 months ago
Rated 5 out of 5
Great product
We use it in a Piaggio Ape based mobile bar, where lines are often installed and removed same day to support an event. This tubing, is giving us a great smooth pour and it s breeze to work with.
June 8, 2021
Purchased
6 months ago
Rated 5 out of 5
Awesome
No noticeable off flavors and works perfectly with duotight fightings no leaks.
June 8, 2021
Purchased
6 months ago
