Blichmann HERMS Coil for Small and Large Kettles
Blichmann HERMS Coil for Small and Large Kettles
Blichmann HERMS Coil for Small and Large Kettles
Blichmann HERMS Coil for Small and Large Kettles
Blichmann HERMS Coil for Small and Large Kettles


Blichmann HERMS Coil for Small and Large Kettles

Please select from the following option(s) to see pricing and availability.
Size:
$141.99 to $163.99
Description

Turn your kettle into a Heat Exchanged Recirculation Mash System with the HERMS coil from Blichmann Engineering. Comes in two sizes, small for 7.5 to 10 gallon kettles, and large for 15 to 55 gallon kettles. Installation instructions can be found below under "Documents".

  • 304 Stainless Steel
  • Small HERMS Coil fits up to 10 Gallon Kettles
  • Large HERMS Coil fits 15 to 55 Gallon Kettles
  • Easy to install and sanitize bulkhead fittings!
  • 1/2" NPT Connections
  • Includes two 1/2" elbow QuickConnector™ fittings!

Dimensions:

  • Small - 7.75" (tall); 25' long tube
  • Large - 9.5" (tall); 32' long tube


Lowest Price Guarantee, this item has MAP pricing so you can be confident you won't find it for less.

Drop Ship: This product will ship directly from the supplier. Delivery may take 1–4 weeks depending on the vendor. Blichmann products are typically shipped in under a week.

Shipping Limitation: This item does not qualify for free shipping.

California Recipients: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Customers Also Purchased

Stainless Steel Quick Disconnect (QD) - Male QD x 1/2 in. MPT
$10.19

Stainless Steel Quick Disconnect (QD) - Female QD x 1/2 in. Barb
$14.44

Stainless Ball Valve - 1/2 in. Full Port
$15.99

Stainless Nipple - 1/2 in. x 1 in.
$3.49

Stainless Tee - 1/2 in. FPT
$5.49

Blichmann AutoSparge
$69.99

Weldless Whirlpool Arm (Stainless)
$37.99

Stainless Steel Quick Disconnect (QD) - Male QD x 1/2 in. FPT
$11.99

Ss BrewTech InfuSsion Mash Tun Sparge Arm
$60.31

Ss BrewTech Mash Re-Circulation Manifold
$64.95

Ss BrewTech Whirlpool Fitting - 1/2 in. MPT
$24.95

Stainless Steel Pump Head for 25 Watt MKII Pump
$29.99

Stainless Steel Camlock - Male Cam X 1/2 in. Female (Type A)
$8.99

Stainless Steel Camlock - Female Cam X 1/2 in. Barb (Type C)
$12.99

Stainless Steel Camlock - Male Cam X 1/2 in. MPT (Type F)
$7.99

Blichmann RipTide™ Brewing Pump | Stainless Steel Head | Magnetic Drive | Curved Blade Impeller | 7 GPM | 1/2" MPT Inlet/Outlet
$219.49

Blichmann Whirlpool Kit
From $75.99 to $89.00

Weldless Stainless Steel Heating Element
From $54.99 to $54.99

X-Dry Series Chugger Pump (Inline) - Stainless Steel
$224.99

Anvil Brewing Pump
$65.99

Blichmann BrewCommander™ Brewhouse Controller
From $438.99 to $658.98

Inkbird PID Temperature Controller - IPB-16S
$110.49

Community Q&A
Powered by Emplifi
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 3 questions Browse 3 questions and 20 answers
Why did you choose this?
MoreFlavor Store
For a basic HERMS setup.
Dominic M on Aug 25, 2022
Build a HERMS homebrew system.
Mark M on Oct 8, 2021
For a basic HERMS setup.
Dominic M on Aug 25, 2022
Need for new HERMS setup
Donald s on Dec 22, 2021
Build a HERMS homebrew system.
Mark M on Oct 8, 2021
Replacing my copper HERMS coil.
Steve D on May 13, 2021
Putting together a new electric HLT and HERMS system and this coil will work perfectly to achieve my desired outcome.
Terry Murphree on Apr 10, 2021
converting from gas RIMS to electric HERMS
Tim M on Feb 21, 2020
online reviews
Caleb M on Jan 9, 2020
gift for spouse - on his wish list
Becky L on Dec 19, 2019
I chose this to help maintain an even temperature gradient in the mash. I use a cooler and had to pour into a pitcher and pour back in in order to keep a constant mash temp.
AL R on Nov 14, 2019
Building HERMS system. Got it from MoreBeer because of the great customer service.
Gustavo Q on Nov 5, 2019
Smallest diameter 1/2" coil I could find
Steven C on Aug 28, 2019
right size and additional fittings for a good price
Derrick P on Jul 20, 2019
Picked this item because Blichmann is known for outstanding quality and looked like the obvious route when looking to build my HERMS system. At 125 bucks, you probably couldn’t build the same thing on your own for cheaper
Joshua M on Mar 19, 2019
for use in the hot liquor tank to raise mash temp
Jim on Feb 5, 2019
Upgrading my homemade HERMS system. Best price for a coil with welded fittings
David F on Dec 20, 2018
Only way I can purchase this product. Not sold in New Zealand
NZ1759975 Trevor T on Dec 1, 2018
Because Beer
Jarred N on Nov 28, 2018
wanted to replace my copper one
Colin M on Oct 18, 2018
Upgrading to a herms
Wanda W on Oct 13, 2018
Need for new HERMS setup
Donald s on Dec 22, 2021
Replacing my copper HERMS coil.
Steve D on May 13, 2021
Considering using this for chilling by installing into an electric boil kettle. One kettle for biab mash and boil, chiller sanitized by boil. Disconnect power, connect coolant. No need to remove if cleaned right away. Anyone see problems with this setup?
David S on Jan 1, 2021
BEST ANSWER: I’m using the large coil in my 15 gal HLT with whirlpool circulation. With this setup I have about 1.5 deg F loss HLT to Mash Tun so it is efficient and should work fine for cooling. I mounted the coil per Blichmann instruction and it takes 13 gal in the HLT to completely cover the coil. You may want to double check mounting location in your kettle to see how much will be covered on your typical batch and if there is space for you brew bag. If you have the ability to whirlpool it will help with the rate of cooling. The bulkhead connections and quality of this coil are top notch and I had a couple question and the Blichmann folks were quick to reply and very helpful so may be worth talking to them. Good luck in your design!
Does anyone know, can you use regular 1/2" npt fittings on this instead of the quick connect elbows it comes with?
Philip M on Oct 13, 2020
BEST ANSWER: Correct, for my HERMS I drilled holes in the kettle, fastened it to the kettle with a nut and washers, and mounted ball valves to the threads.
Will this fit in the Anvil Foundry 6.5? I am planning to use the smaller Foundry unit as an HLT for a small HERMS setup. I want to run one port through the valve port of the Foundry and then attach a qd to the other end to recirculate back to the mash tun.
Ryan T on Nov 22, 2022
BEST ANSWER: No it won't. The internal diameter of the foundry is 12.5 inches. The small coil is 12.3 inches. I don believe there wojkd be enough room to install it. There is a website that a guy makes coils and may have one that fits or could make one to fit. Sorry don't remember the name of the site.
Reviews
Powered by Emplifi
4.9 / 5.0
10 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
9
1
0
0
0
Rated 5 out of 5

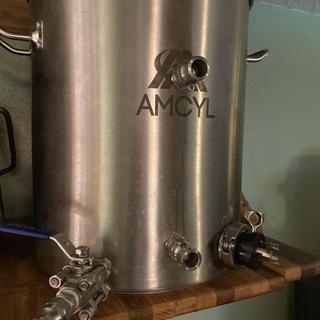

Its been great . Needed a step bit to drill pot. Easy install after rhat. Two brews and the herms is less hassle and sits lower in the tank. Easy to clean in place too
User submitted image
Added Nov 30, 2021
November 30, 2021
Purchased
 over 3 years ago
Rated 5 out of 5
Blichmann HERMS Coil
Even thou it was a small batch for the first usage it work great.
The tap water was a little warm (71 f) but still it did great.
May 26, 2021
Purchased
 over 3 years ago
Rated 5 out of 5
Perfect little coil for a 10 gal HLT.
I haven't finished building my electric HLT yet but I purchased this HERMS coil to maintain temperatures in my mash tun. With 29 years experience home brewing and building home brew equipment, I have no doubt this is the correct coil to achieve adequate temp control. I am in the process of converting to all electric equipment and a complete new system. This coil is an important piece to complete the build.
May 1, 2021
Purchased
 over 3 years ago
Rated 5 out of 5
Great product. Zero flaws
Building a HERMS system from scratch and this coil is perfect!!
February 2, 2021
Purchased
 over 3 years ago
Rated 5 out of 5
Great system. Just make sure to measure your drill size first as thread size isn’t the same as hole saw size
February 3, 2020
Purchased
 over 4 years ago
Rated 5 out of 5
Stepping up my brew game.
So I haven’t actually used this to brew yet. Did a wet run with just water. I know it’s going to step my brewing game up though. I bought the large coil and installed it on a homemade keggle. The ribs on the keg were just barely outside the measurements for drilling holes for installation which meant I had to bend and wiggle it a little in order to get the washers to seat correctly. Which reminds me... I installed the washers from the inside. Two schools of thought on that but my logic was, fire on the outside, washer on the inside. It works.
December 6, 2019
Purchased
 over 5 years ago
Rated 5 out of 5
Great product
Works exactly the way it should, my mash temp is more controllable than ever!
July 7, 2019
Purchased
 over 5 years ago
Rated 5 out of 5
It does the thing

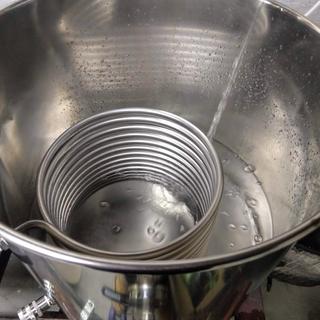

I went back and forth on whether to try to make my own with bulk tubing and compression bulkhead fittings but I ultimately decided that this was the most cost/time-effective solution available. It installed easily, the fittings are high quality and it's plenty large enough to step mash on 10 gallon batches. I'm glad I didn't mess around with trying to build my own because I probably would have wasted $200 and 8 hours of my life by the time I was done.
User submitted image
Added Jan 9, 2019
January 9, 2019
Purchased
 over 6 years ago
Rated 4 out of 5
Quality product
Installation was simple but had to add washers and gadgets to the installation that where not included. Four stars is because nut that fastens to outside of pot should be larger or include a washer with hardware for instalation.

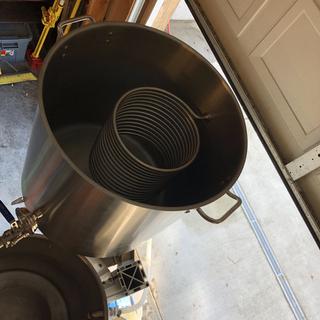

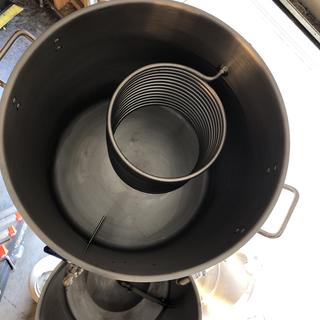

26 gallon Hot liquor tank
Installation was simple but had to add washers and gadgets to the installation.
October 26, 2018
Purchased
 over 6 years ago
Rated 5 out of 5
Works.
It works exactly as it should. No leaks, and built well.
September 29, 2018
Purchased
 over 6 years ago
