Blichmann Electric All Grain Brewing System (RIMS)

Blichmann Electric All Grain Brewing System (RIMS)

Please select from the following option(s) to see pricing and availability.
Size:
$6,567.99 to $7,583.99
Description

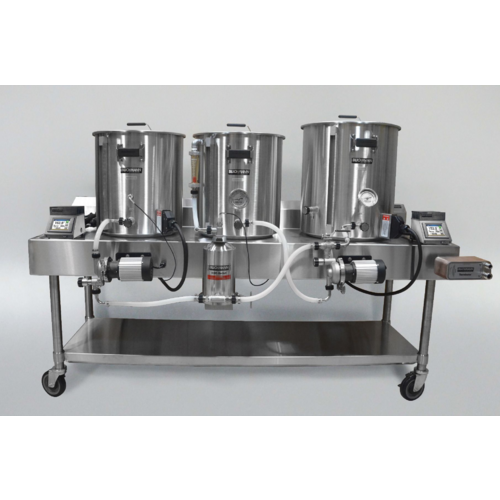

If you want a top of the line, electric, 3 vessel brewing system then look no further! Blichmann has released their new horizontal brew systems complete with all of Blichmann's innovative products. The RIMS-style system comes in 4 different batch sizes listed above. The system comes with 3 Boilermaker kettles (2 electric) with 240 v BoilCoils, 2 Riptide Brewing Pumps, 2 Tower of Power Controllers, all on a large custom stainless steel table with the necessary hoses and fittings.

The Boilermaker kettles are all made in the US from a single piece of heavy gauge, US made stainless steel. They come with Linear Flow Valves that allow for precise control of flow and disassemble for easy cleaning. Borosilicate sight gauges are mounted to the side of each kettle. The diptubes all come with rotating racking arms to allow you to adjust them for clearer beer. The mash tun comes with the patented button louver false bottom and Blichmann's AutoSparge. The boil kettle comes with a whirlpool fitting and an adjustable viewing thermometer.

Blichmann's BoilCoil are engineered to perform at their best in the Boilermaker kettles. They'll provide consistent heating, boil quality, and boil-off rates. The BoilCoil has an ultra low watt density making scorching impossible when used properly. Made from stainless steel and with an easily removable plug to clean.

Features:

  • 3 - Boilermaker Kettles (2 Electric)
    • Made in the US with US made heavy gauge 304 stainless steel
    • Includes Linear Flow Valves to allow for precise control and easy cleaning
    • Rivet free handles, rugged cool touch grips, oriented for easy carrying
    • Borosilicate glass level gauge
    • Rotating racking arm diptubes
    • Blichmann provides a limited lifetime warranty on the kettles
    • 5 gallon size includes 3 - 10 gallon kettles
    • 10 gallon size includes 2 - 15 gallon kettles and a 20 gallon boil kettle
    • 15 gallon size includes 2 - 20 gallon kettles and a 30 gallon boil kettle
    • 20 gallon size includes 3 - 30 gallon kettles



  • 2 - 240 v BoilCoils
    • Each BoilCoil is built for the Boilermaker kettles so you can count on consistent heating performance, boil quality, and boil-off rates.
    • The BoilCoils have less than ultra low watt density meaning there is no chance of scorching when used properly
    • Made from stainless steel
    • Cleaning is easy with the removable plug
    • The 240 v Coil includes a 12 ft cable with a molded twist lock L6-30P plug



  • 2 - Riptide Brewing Pumps
    • Ultra quiet construction
    • Tri clamp fittings for easy cleaning and connecting/disconnecting
    • Linear Flow Valves



  • 2 - BrewCommander™ Brewhouse Controllers
    • Intuitive touchscreen interface
    • Keypad data entry
    • Advanced temperature control algorithm
    • Automated step mashing with up to 5 steps and 9 profiles
    • Boil addition times with up to 7 additions and 9 profiles
    • Integral pump switch
    • Lab-grade precision thermometer that is superior to RTDs
    • Advanced customizable settings
    • Mash step ramp rate delay
    • HERMS / RIMS offsets
    • Audible alarms
    • Upgradable firmware
    • Switchable between table and wall mounting
    • Modular with multiple unit connections possible
    • Optional relay modules allow control of a single kettle with up to 5 heating elements all on one controller
    • Optional SparkBox™ Remote Ignition Module
    • Offered in electric and gas versions



  • Heavy Duty Custom Table
    • 14 gauge 304 stainless steel construction
    • Made in the USA
    • Drip ledge to keep your floor clean
    • Built-in junction boxes
    • Heavy duty caster make it easy to move around
    • Lower shelf storage
    • Table dimensions:
      • 5/10 gallon size - 72 in L x 24 in W x 25 in H
      • 15/20 gallon size - 96 in L x 30 in W x 24 in H
Shipping Limitation: This item does not qualify for free shipping.

Community Q&A

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question and 1 answer
What is the minimum batch size that can be brewed on the 20 gallon system?
Tony H on Nov 15, 2019
BEST ANSWER: Not sure if this helps, I have the 15 gal. system and I did a 10 gal. batch the first time that I used it.
