Ball Lock Adapter Tapping Head for Sanke Kegs
KEG870

Ball Lock Adapter Tapping Head for Sanke Kegs

Returns
60 day no hassle return policy. Details
Description

Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this item to you when we receive more inventory.

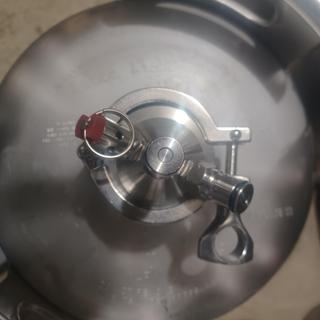

If you like serving out of commercial kegs but prefer the ease of using ball lock fittings in your draft system, this adapter is for you. Instead of buying additional keg couplers and beer thread to ball lock adapters, you can use this tapping head to go straight from sanke keg to ball lock. To install, remove the keg spear, place the gasket on the keg ferrule with the beaded side facing up, attach the silicone dip tube and place the tapping head on the ferrule, then secure with the 2" tri-clamp.

Be sure to always depressurize the keg before removing the tapping head.

Includes:

  • Ball Lock Post Lid
  • 2" tri-clamp
  • Single-side beaded tri-clamp gasket
  • 60 cm silicone dip tube (23.6")
  • Red 2.5 bar PRV (36 psi)





Prebook Item: Please note this item is not currently in stock, but is available for Pre-Order. We do require payment in full in order to reserve stock.

Item # KEG870
Weight 1 LBS
Community Q&A

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 2 questions Browse 2 questions and 2 answers
Why did you choose this?
MoreFlavor Store

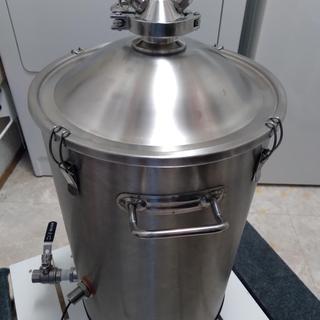

Fermenting under pressure in a free sankey.
David K on Aug 19, 2020
Fermenting under pressure in a free sankey.
David K on Aug 19, 2020
Can the two posts and the PRV all be swapped around to different positions? Are they all attached with the same thread size?
Daniel Mayfield on Apr 24, 2020
BEST ANSWER: Unfortunately not. The threading for all of the pieces is different and not interchangeable.
How does the plastic dip hose connect? Can it be replaced with a corny-style stainless dip tube?
Jay Eychaner on Jun 18, 2020
BEST ANSWER: The plastic hose connects to the bottom of the cap with a hose barb fitting. It would be possible to adapt it to use a steel dip tube if you use a small amount of tubing to couple from the barb to the stainless dip tube. You may also need to cut your dip tube a little short to fit perfectly.
Reviews

5.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
1
0
0
0
0
Rated 5 out of 5
One of those hmm... finds
It works, I couldn't have easily fabricated it's equivalent , the pickup tube seemed small but it works too. No clog.

Since adapting corny kegs my sankes have been collecting dust. This thing saved the serving career of a plastic pubkeg. They're fragile finicky things come cleaning time. Now it's modified, together and will stay that way and get used.
April 25, 2020
Purchased
12 months ago
